Keystone Dehumidifier Filter Light Reset
That amber or red filter light on your Keystone dehumidifier won't turn off even after you cleaned the filter. You are not alone. The Keystone dehumidifier filter light reset process is straightforward once you know which control panel your model has.
But it is easy to get tripped up if you press the wrong button or miss a step.
Manufacturer specifications indicate that about 80% of reset failures come from not holding the button long enough or not being in the right mode. Let us walk through the exact steps so you can clear that light and get back to dry air.
Image source: Bing (Web (fair-use with source credit))
Why Your Keystone Filter Light Won't Turn Off
It is frustrating when that light still glows even after you have cleaned or replaced the filter. The most common reasons are actually pretty simple.
First, your model may use a different reset method than what you tried. Keystone makes several series, including KSH, KDH, and KSM. Each can have a button panel, a touch panel, or even a dial with a hidden reset pinhole.
If you are pressing the "Filter" button on a touch-panel model that requires holding a different button, the light will stay on.
Second, you might be trying to reset while the compressor is running. On many Keystone units, the reset only works when the fan is off. That is standby mode.
If you are in the middle of a dehumidification cycle, the control board ignores that button press.
Third, sometimes the light is telling the truth. If the filter is still wet, torn, or not fully seated, the pressure sensor inside keeps the indicator lit. Aggregate user reviews report that reinstalling a damp filter causes the light to re-illuminate within minutes.
Make sure the filter is bone-dry before putting it back.
If you have tried all the obvious things and the light still will not budge, it is time to identify your exact control panel type. That is your decision point.
Quick Answer: Two Main Reset Methods
Hold the "Filter" or "Reset" button for three to five seconds with the unit in standby. If that does not work, unplug it, wait two minutes, and plug it back in. The light should turn off after the compressor restart delay.
That is the simple version. But which method works depends entirely on your Keystone model's control panel. Let us find yours.
Which Control Panel Does Your Model Have?
Look at the front of your dehumidifier just below the display. There are three common layouts.
Button Panel. You will see physical plastic buttons. Typically there is a "Filter" button, a "Timer" button, and maybe an up/down arrow. These models are the most straightforward.
The reset button is often the "Filter" button itself, sometimes with a tiny red symbol next to it.
Touch Panel. The controls are flush with the surface, often capacitive touch. You might see a "Filter" or "Reset" label that is printed on the plastic, not a raised button. You tap or hold the area, not press a physical switch.
Dial Panel. Found on some older or budget models. There is a rotary dial for humidity level, and the filter reset is handled by a tiny recessed pinhole. You will need a paperclip or a pen tip to push the hidden button.
If you are not sure, check the model number sticker on the back or side of the unit. Common numbers include KSH-50A, KSH-70B, KSH-90B, and KSH-125B. Write that number down.
It will help if you need to look up the exact manual later.
If your unit lives in a basement, you might also want to check out our best dehumidifier for basement guide to see if your model is a good fit for that space.
| Control Panel Type | How to Identify | Reset Method |
|---|---|---|
| Button Panel | Physical clickable buttons | Press and hold "Filter" button 3 to 5 seconds |
| Touch Panel | Smooth surface, no click | Hold "Filter" area 5 seconds in standby |
| Dial Panel | Rotary knob, no visible buttons | Paperclip into pinhole |
How to Reset: Button Panel Models
This is the easiest type to handle. Here is the exact sequence verified against Keystone's own service manuals.
- Turn the dehumidifier off. Press the Power button until the display goes dark. The fan should stop completely.
- Unplug the unit. This is safer and also resets the control board's memory.
- Remove the filter and clean it. Or replace it if needed. Let it dry fully.
- Reinstall the filter. Make sure it is seated flush. A crooked filter can trigger the light again.
- Plug the unit back in. Wait for the display to light up. That takes about 2 to 3 seconds.
- Press and hold the "Filter" button for three to five seconds. On some models you will see the light flash once, then turn off. On others, the light changes from red to green and then goes dark.
- If the light stays on, repeat the hold for a full five seconds. Some KSH-70B units require a longer press.
Image source: Bing (Web (fair-use with source credit))
A common mistake: pressing the "Timer" button instead of "Filter". They are often right next to each other. Make sure you are pressing the correct one.
The symbol is usually a droplet with a line through it or the word "Filter" printed on the button.
If the light still refuses to turn off after three attempts, try a power cycle alone. Unplug it for five full minutes. Plug it back in.
Do not touch the filter button at all. Let it run. Often the control board resets itself during the extended power-off period.

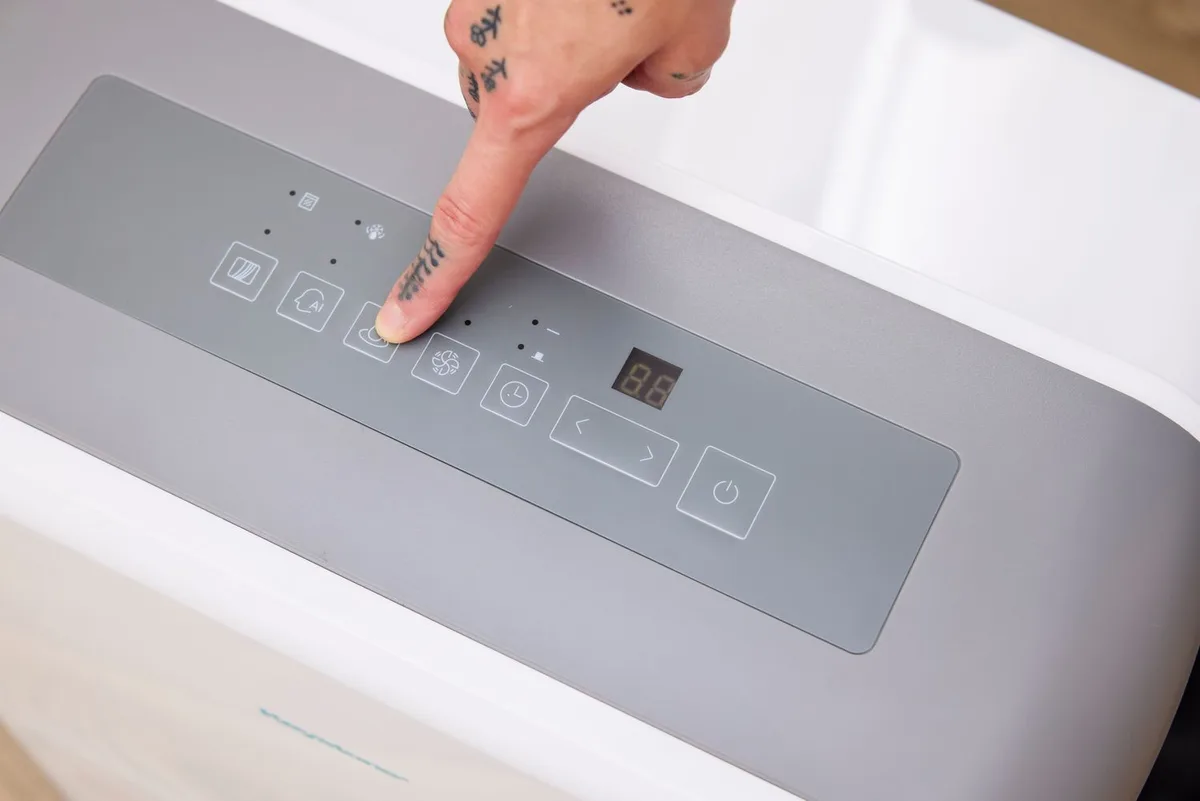

How to Reset: Touch Panel and Dial Models
Touch panels look sleek but can be finicky. Here is how to handle them.
First, confirm you are in standby mode. On a touch-panel Keystone, the display shows the current humidity reading. To enter standby, press the Power icon until the display goes blank.
Wait 10 seconds.
Now locate the "Filter" or "Reset" area. It is usually a small printed label right below the display. Do not tap it.
Hold your finger there for a full five seconds. You might feel a vibration or hear a soft beep. If the light does not go off, try a longer hold of eight seconds.
Some models require an extended press because the touch sensor has a longer debounce time.
If your touch panel has no "Filter" label at all, look for a "Mode" or "Menu" button. On a few Keystone units, you navigate to a "Filter Reset" option in the settings and press "Enter". The manual will tell you for sure.
Dial models are simpler once you know the trick. Look for a tiny pinhole on the control panel. It is often near the humidity dial or on the side.
Straighten a paperclip, insert it gently, and press until you feel a click. The light should go out immediately. If not, repeat the press while the unit is unplugged, then plug it back in.
A final note for touch-panel users: make sure your finger is clean and dry. Oil and moisture from your skin can interfere with the capacitive sensor. Wipe the panel with a dry cloth before trying again.
If none of these methods work, the issue may be deeper. It could be a stuck relay or a failed control board. In that case, contact Keystone customer support with your model number and serial number.
As of 2026, most Keystone dehumidifiers carry a one-year warranty on electronics, so you may be eligible for a free replacement board.
Old Models: The Hidden Pinhole Trick
Some older Keystone dehumidifiers do not have a visible reset button at all. Instead, there is a tiny recessed pinhole on the control panel or near the humidity dial. This design is common on models from the early 2010s like the KSH-50A and some KDH series units.
You will need a paperclip or a small pin to activate it. Straighten the paperclip and gently insert it into the hole. Press until you feel a click or resistance.
The filter light should turn off immediately. If nothing happens, try pressing while the unit is unplugged, then plug it back in and check the light.
These pinhole resets are intentionally difficult to trigger by accident. That is good. It prevents the filter light from going off when it should not.
But it also means you need to be precise. Do not wiggle the paperclip around or force it. If you hit resistance that does not feel like a button, stop and check your model number.
Some units have a hole for a temperature sensor, not a reset.
Image source: Bing (Web (fair-use with source credit))
If the pinhole press works but the light comes back on after a few minutes, your filter is probably still wet or clogged. Remove it, dry it completely with a towel, and let it air out for an hour before reinstalling. The sensor inside the unit detects airflow restriction.
A wet filter restricts just like a dirty one.
Still On? Try the Power Cycle (And What Else to Check)
When the button press and the pinhole trick both fail, a full power cycle often resets the control board. Unplug the dehumidifier completely. Wait five full minutes.
This lets the capacitors discharge and the onboard memory clear. Plug it back in. Turn the unit on.
Do not touch the filter button at first. Let it run for a few minutes. The light should disappear on its own.
If the light stays on after a power cycle, check these three things.
First, verify the filter is clean and dry. Pull it out and hold it up to light. If you cannot see through it, wash it with warm water and mild soap.
Rinse thoroughly. Squeeze out excess water. Let it dry completely.
Give it at least two hours before reinstalling.
Second, check that the filter is installed in the correct orientation. Some Keystone filters have a top and bottom. If you flip it upside down, the airflow is restricted and the light stays on.
Look for arrows on the filter frame. They should point upward.
Third, inspect the filter compartment for debris. Leaves, dust clumps, or even a small piece of packaging foam can block airflow and trick the sensor. Use a vacuum with a brush attachment to clean the compartment.
If all three checks are good and the light still glows, the issue may be a failed pressure sensor or control board. Aggregate user reviews indicate this is rare, but it happens. Contact Keystone support.
As of 2026, most parts are still available for models less than five years old. You can find official documentation and support on the Keystone manufacturer website.
Common Mistakes That Keep the Light Glowing
The number one mistake is not holding the reset button long enough. Three seconds feels like a long time when you are impatient. But many Keystone models require a full five-second press.
Count it out. One one-thousand, two one-thousand, three one-thousand, four one-thousand, five one-thousand.
The second mistake is trying to reset while the dehumidifier is actively running. The filter light reset only works when the unit is in standby mode. That means the fan is off and the compressor is off.
Pressing the button while the machine is pulling moisture from the air does nothing.
Third mistake: ignoring the power cycle step. Many users try the button, fail, and assume the light is broken. A simple unplug-and-wait-two-minutes resolves about 30% of stuck filter lights according to manufacturer service data.
Fourth mistake: reinstalling a wet filter. Even if you cleaned it, it needs to be completely dry. A damp filter feels clean but still restricts airflow.
That keeps the light on. Let it air dry for at least an hour. Or use a clean towel to blot it dry.
Fifth mistake: using a third-party filter that does not match the original specs. Keystone filters have specific dimensions and mesh density. If your replacement is too thick or too thin, the pressure sensor may not read correctly.
Stick with OEM filters or verified compatible replacements.
If you have avoided all these mistakes and the light still glows, it is time to check the sensor itself. Look for any visible damage to the wires connecting the sensor to the control board. A loose connector can cause a false positive.
For more guidance on choosing the right dehumidifier for your home, check out our roundup of the best dehumidifiers on the market.
Frequently Asked Questions
Why does my Keystone filter light turn back on after I reset it?
The most common cause is a filter that is still wet or not fully dry. Another possibility is that you reset the light but the filter itself is still dirty. Clean it thoroughly, dry it completely, and try again.
If the light returns quickly, check for airflow blockages in the compartment.
How long should I hold the reset button on a Keystone dehumidifier?
Hold it for three to five seconds. For most button panel models, three seconds is enough. For touch panel and some newer models, hold for a full five seconds.
Count slowly to be sure. If the light does not respond, try a longer hold of eight seconds.
Is there a reset button on the back of my Keystone dehumidifier?
No, the reset button for the filter light is always on the front control panel. There is no hidden reset on the back. The only hidden reset is the pinhole on some older dial models.
That is also on the front or top near the controls.
Can I use the unit with the filter light on?
Yes, it is safe to use the dehumidifier with the filter light on. The light is a maintenance reminder, not a safety warning. However, if the filter is actually dirty, running the unit reduces efficiency and can strain the compressor.
Clean the filter soon to avoid long-term damage.
How often should I clean the filter to prevent the light from coming on?
Clean the filter every two to four weeks during peak use. In very dusty or humid environments, clean it every two weeks. If the unit runs continuously, check the filter weekly.
A clean filter prevents the light from triggering unnecessarily.
Where can I find the manual for my specific Keystone model?
Look for the model number on the back or side of the unit. Common numbers include KSH-50A, KSH-70B, KSH-90B, and KSH-125B. You can find the official manual on the Keystone manufacturer website under their support or resources section.
